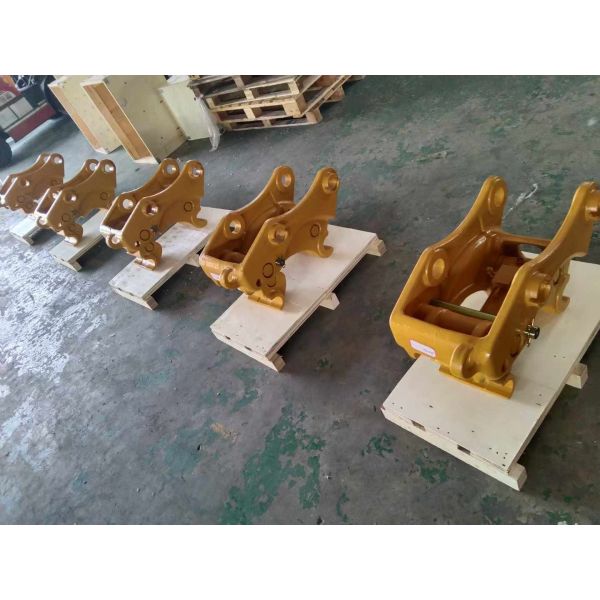

Komatsu PC200 R200 R215 R225 R220 R250 R260 R290 R300 R300R450 Excavator Attachments Hydraulic Quick Coupler
What is the purpose of a quick coupler?
Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of working tools or buckets and attachments on the machine.
A good quick hitch coupler should be durable and able to withstand the weight and pressure of your machine. When choosing a quick hitch coupler, you should also consider how often you will use it. If you use this accessory frequently, choose a heavy-duty unit, but a lighter-duty model may suffice for occasional users
What are the different types of quick couplers for mini excavators?
There are two primary types of quick couplers: mechanical and hydraulic. Each of these has its advantages and specific applications in the field.
What is the difference between a manual coupler and a hydraulic coupler?
Manual couplers are all about hands-on changeovers, meaning you'll need to get down and dirty to switch attachments. They're straightforward and budget-friendly but can slow you down. On the flip side, hydraulic couplers let you swap tools without leaving your seat, making them a real timesaver.
What is a mechanical quick coupler?
Quick couplers are mechanical devices designed to connect different types of attachments, such as buckets, grapples, or forks, to heavy equipment, such as excavators or loaders. Their primary function is to enable rapid attachment changeouts, replacing the need for manual attachment mounting and dismounting
Why do we use couplers?
The usage of couplers in construction reduces significant amount of conventional lap length and saves time and materials. The standard recommended tests such as tensile test, slip test, cyclic test and fatigue test ensures the quality of coupler in transmitting the forces with proper rebar yielding failure
| SPECIFICATION |
| Model Unit DPAQ250 DPAQ450 DPAQ500 DPAQ600 DPAQ700 DPAQ900 DPAQ1000 |
| Length(0) | mm | 300~450 | 534~545 | 581~610 | 765 | 924~944 | 983~1050 | 1006~1173 |
| Height(G) | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558~610 |
| Width(B) | mm | 175 | 258~263 | 270~280 | 353~436 | 449~483 | 543~568 | 606~663 |
| PinsCenter Distance(D) | mm | 80~150 | 230~270 | 290~360 | 380~420 | 460~480 | 473~540 | 550~620 |
| ArmWidth(A) | mm | 80~140 | 155~170 | 180~200 | 232~315 | 306~340 | 375~411 | 416~469 |
| Retractable Distance ofoilCylinder | mm | 170~206 | 205~275 | 340~450 | 340~486 | 256~390 | 413~590 | 520~590 |
| Vertical Pins Center Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
| Weight | kg | 25 | 50~60 | 80 | 120~130 | 280~290 | 420~430 | 450~580 |
| Working Pressure | kg/cm² | 40~380 | 40~380 | 40~380 | 40~380 | 40~380 | 40~380 | 40~380 |
| Necessary Flow | L/min | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 |
| Suitable Excavator | ton | 1.5~4 | 4~7 | 5~8 | 9~19 | 17~23 | 23~30 | 33~45 |
